Bar Spacer 2dol

Description

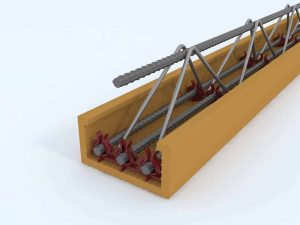

Bar Spacer 2dol

The plastic bar spacer 2dol with standard size and the possibility of placing two reinforcement rebar has been designed and manufactured. To determine the correct distance for trusses and put them in metal molds, joists or fondoleh.

The joist spacer can be used in modern construction technologies; for example, in slab ceilings with hollow-core slabs (waffle ceilings), this spacer is used for direct joist placement with the use of trusses in the empty space between waffle blocks. This plastic rebar spacer is equipped with two locks on both ends and two central locks designed specifically for positioning reinforcing bars. The double-strength joist spacer can hold rebar with a diameter of 6 to 14 millimeters in its slots and can bear a point load of up to 50 kilograms. The purpose of producing this plastic concrete spacer is to create an appropriate distance between steel rebars and to enhance the quality and ease of rebar connections in various joist structures.

Features Bar Spacer 2dol

1. Creates the proper distance between the formwork and rebar for concrete cover.
2. Reduces ancillary costs in construction.
3. Reduces vibration of the rebar.
4. Prevents rebar displacement during concrete pouring.
5. Increases stability and safety in concrete structures.
6. Easy and quick to install.
7. Maintains precise spacing between rebars.



More products: Spacer



Applications

• Establishing appropriate spacing for ready-made joist trusses
• Suitable for direct joist placement in voids between waffle blocks, using trusses and joist spacers
• Equipped with two locking mechanisms on both sides for enhanced stability
• Capable of accommodating rebar with a diameter of 6 to 14 millimeters
• Able to withstand point loads up to 50 kilograms

Method of Using

To prevent deformation of the prepared trusses during transport from the factory to the project site, spacers are installed on the main reinforcing bars of the truss, after which loading onto the vehicle is carried out.

Spacer Usage of Bar Spacer 2dol in Different Conditions

Truss Manufacturing: One spacer is required for every meter of truss length.

Use in Waffle Forms (Hollow Core Slabs): Spacers should be placed 75 cm apart from each other in the waffle forms.

Truss Transport: One spacer is needed for every 2 meters of truss length.

packing

Name	Concrete Cover	Bar size	Packing (QTY)	WEIGHT (KG)
Bar space 2Dol	15	6-16	500	6/8
