Flat bar spacer

Description

Flat bar spacer

Flat Bar Spacer is a suitable piece for creating concrete coating and is suitable for placing on soft and sinking floors such as foam covered with polystyrene foam.

Creating concrete cover for rebar on soft and compressible surfaces is of special importance, as this issue may lead to damage to the spacing between the reinforcement bars and the floor. For this reason, this spacer is designed as a unique piece with a larger cross-section compared to similar models (such as the flat fixed spacer). This product is particularly suitable for use on soft and sinking floors, such as those covered with polystyrene foam.

Specific applications of this spacer include its use as a plastic rebar spacer and the ability to place two rows of rebars perpendicular to each other. Therefore, the flat bar spacer is an excellent option for rebar intersections, thanks to the height difference between its two intersecting seating areas.

The flat bar plastic cover can withstand a point load of between 120 to 150 kg and can accommodate rebars with diameters ranging from 8 to 16 mm within its jaws.

This spacer is designed to provide optimal performance on surfaces with light rebar networks, such as soft and compressible ceilings, and its use on other surfaces would not be logical, as its flat bottom may cause localized weakness in the structure.

• Reinforcing plastic armature spacing, placing two rows of rebar perpendicular or crossover each other in its grip
• Suitable for placing at the intersection of rebar
• Capable of bearing a spot load of 120 to 150 kg
• Able to accommodate rebar from 8mm to 16mm in diameter
• And…



More products: Spacer



Features Flat bar spacer

• Provides a specific distance between two pieces.
• Stabilizes and strengthens various components in structures.
• Prevents direct contact between two pieces.
• Prevents abrasion between the components.
• Highly resistant to pressure and applied loads.
• Easy to install without the need for special tools.
• Cost-effective, reducing project execution expenses.

Important Notes

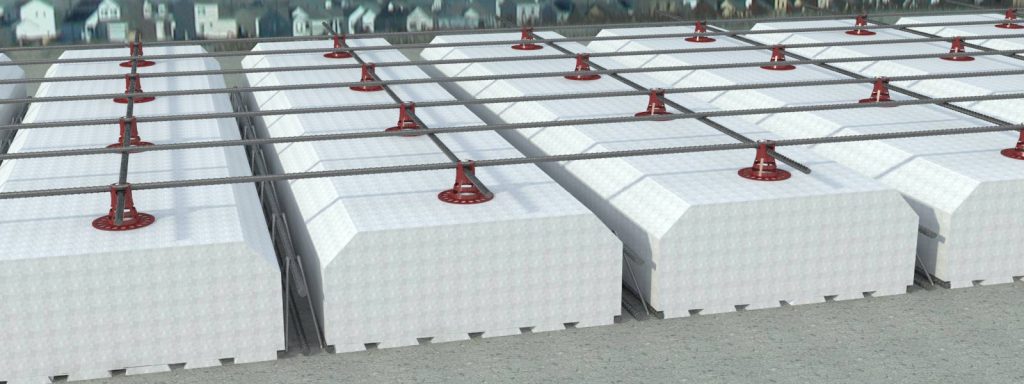

• The plastic flat bar spacer is specifically designed for use on soft and compressible surfaces, such as polystyrene blocks.
• The best location for placing this spacer is at the intersections of rebar.
• Using this spacer on common surfaces like concrete or formwork is not recommended, as its relatively large cross-section can create structural weaknesses.
• If the rebar network is unusually heavy, it is advised to use other horizontal spacers, such as the Hard Fix spacer, between the soft and compressible surface (flat bar spacer).

packing

Name	size	Packing (QTY)
Flatbar 25/30	8 -14	250
Flatbar 40/50	8 -14	250
Flatbar 60/70	8 -14	250
