Mini fix spacer

Description

Mini fix spacer

Mini fix spacer can accommodate rebar with diameters ranging from 6 to 16 millimeters in its locking arms. The most common use of Mini Fix spacers is in steel structures with rebar up to 12 millimeters in diameter. The design of the Mini Fix plastic spacer is such that it is lighter and more compact than similar models, making it a cost-effective option. These spacers can support a point load ranging from 25 to 35 kilograms, which may vary depending on the spacer’s height. Due to the lightweight nature of the sections used in the Mini Fix spacer, typically, placing four spacers per square meter will achieve the desired results. However, if the structure has a denser and heavier rebar network, the number of spacers required per square meter should be calculated based on the weight of the rebar network per square meter and the point load capacity of the spacer.

In structures such as concreting block beam roofs, slatted deck roofs, etc., naturally, the weight of the rebar network and the operational loads are less than other structural elements, and Mini spacer can be used to form a suitable concrete cover.

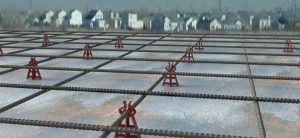

The Mini Fix spacer is a reinforcement holder made of durable plastic, designed to support light reinforcement meshes in lightweight structural ceilings. This plastic spacer is one of the most commonly used types of floor and ceiling spacers in the construction industry. By providing vertical spacing beneath the rebar network and formwork, it helps ensure proper concrete coverage. This process, in accordance with the technical specifications and thickness determined in Chapter 9 of the National Building Code, guarantees the quality of the concrete pour.

Application Mini fix spacer

• The Mini spacer is designed to provide proper concrete cover for rebar.
• This plastic spacer is lighter and more compact compared to similar models.
• Economically, this spacer is a cost-effective option.
• It has a point load-bearing capacity ranging from 25 to 35 kg.
• It can accommodate rebar with diameters from 6 to 18 millimeters.
• This spacer is suitable and efficient for use on horizontal surfaces.



More products: Spacer



Features Mini fix spacer

• It creates a uniform and consistent concrete cover.
• Its light weight and fast installation are among its key features.
• It prevents corrosion of the rebar in concrete structures.
• It is easy to install and does not require special tools.
• It helps maintain precise spacing and stability between the rebars.

packing

Name	Bar size	Packing (QTY)	WEIGHT (KG)
Mini fix 20	6-16	1000	6/5
Mini fix 25	6-16	1000	7
Mini fix 30	6-16	1000	7/5
Mini fix 40	6-16	1000	9/8
Mini fix 50	6-16	1000	11
