Tile Leveling System
- It causes the tiles to be leveled in tiling.
- It increases the accuracy of tiling
- It is used to level the parquet
Description
Tile Leveling System
Tile leveling system is not only used for leveling tiles but also for leveling other types of flooring, such as parquet. In addition to enhancing the appearance of the tiled surface, this method has other benefits. For example, it prevents water from collecting in the gaps between tiles during cleaning and helps prevent the buildup of dirt and the dulling of the grout lines between the tiles.
When installing tiles and ceramics, paying attention to various factors can significantly impact their appearance and performance after installation. One of the most important parameters is ensuring the tiles are level with each other, which is achieved using special leveling tools. In traditional methods, a layer of mortar or tile adhesive would be applied to the surface, and the tiles would be placed on top. Then, they would be adjusted by tapping with a rubber hammer. Additionally, a plumb line was used to ensure the tiles were properly aligned.

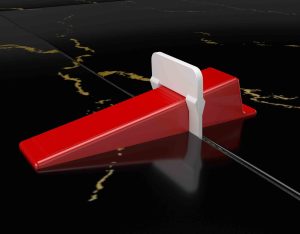

These methods have drawbacks, such as wasted time and the potential for tiles to shift or slide due to the hammering. To simplify the leveling process and improve the quality of the installation, plastic pieces known as tile leveling systems have been developed and introduced. These leveling tools consist of two parts: clips and wedges, with the wedge being the male piece and the clip being the female piece. During installation, the tile leveling clip is placed between the tiles, and the wedge locks the tiles into position, ensuring precise and complete leveling without the need for hammering or a plumb line. This method creates a smooth and even surface, which is far superior to traditional techniques.
properties and effects Tile Leveling System
- Helps in leveling tiles during the tiling process.
- Increases the accuracy of tiling work.
- Can also be used for leveling parquet floors.
- Suitable for leveling and smoothing various surfaces.
- These pieces are lightweight, easy to handle, and portable.
- Resistant to pressure and prevents breakage.
More products: tile leveling system
Application Tile Leveling System
- Prevents water from accumulating in the joints between tiles during cleaning.
- Prevents staining and dullness of the joints between tiles.
- Reusable wedges reduce costs.
How to Use
Tile and ceramic levelers consist of two parts: clips and wedges, and are produced in various sizes for different thicknesses. First, select the appropriate leveler based on the thickness of the tiles, ceramics, or parquet. Then, for starting the tiling process, it is recommended to begin from one corner of the area.
Using tools such as a square, ruler, tape measure, or laser measure, draw two lines at a 90-degree angle to each other in the corner of the space to design the installation of the first tile. Apply tile adhesive to the substrate. After installing all the tiles, allow the adhesive to fully cure and bond the tiles as explained earlier.
To remove the clips, simply tap the sides with the tip of your shoe or a hammer, and the clip will break from the vertical to horizontal connection point. The horizontal part of the clip will remain under the tile, while the vertical part will come out.
Note that clips are single-use, but wedges can be reused. It is recommended to apply the tile adhesive using a notched trowel. First, place and fix the tile or ceramic according to the marked lines. For subsequent tiles, position the clips as needed on each side and then install the tiles. After placing two tiles next to each other, insert the wedge into the clip gap between the two tiles and lock it in place using the special leveling pliers.
After finishing the tiling, allow the adhesive to fully cure again. Then, tap the sides to easily remove the clips, and the vertical part will detach.
Package
| description | packing(QTY) |
| small leveling | 50pairs |
| small clips | 100pcs |
| small wedge | 100pcs |
| medium leveling(1.5 mm) | 50pairs |
| medium clips(1.5 mm) | 100pcs |
| medium clips(2mm) | 100pcs |
| medium clips(3mm) | 100pcs |
| large leveling (1.5 mm) | 50pcs |
| large clips(1.5 mm) | 100pcs |
| large clips(2mm) | 100pcs |
| large clips(3mm) | 100pcs |
| large wedge | 50pcs |
